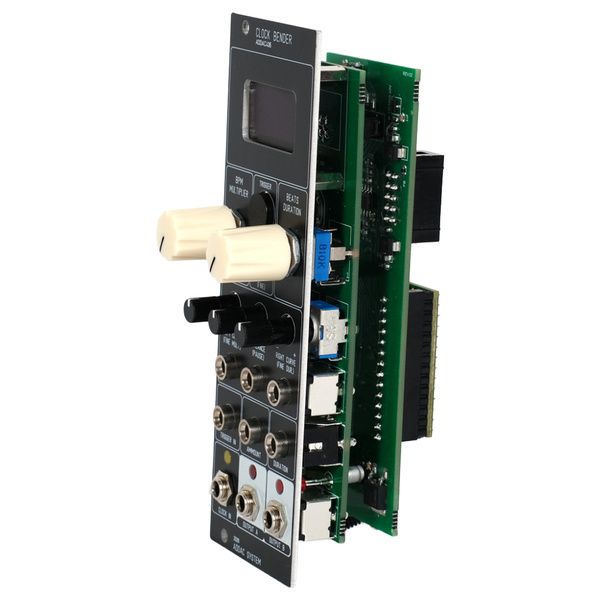

ADDAC 406 Clock Bender

Eurorack Module

Two-channel clock processor for generating dynamic rhythms
Processes an incoming clock signal and generates two independent trigger signals that continuously speed up or slow down the tempo over a selectable number of beats

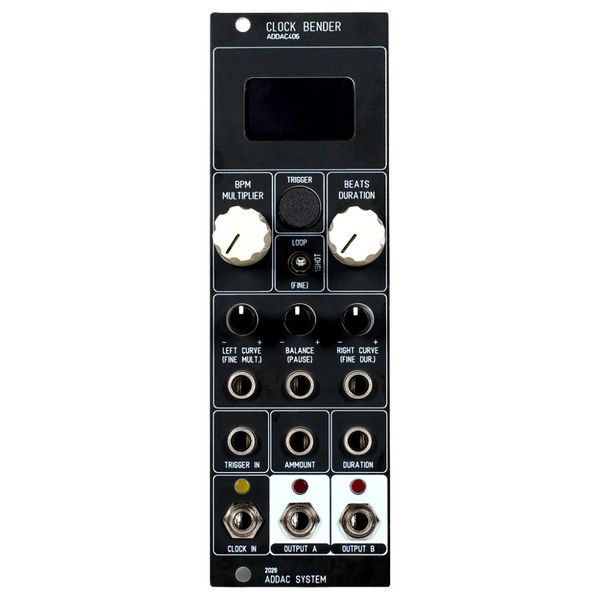

Easy to use via the OLED display and controls for BPM multiplier and beat duration
Controls for Balance, Left Curve and Right Curve for shaping exponential, linear or logarithmic tempo curves (each with a CV input)
Loop and one-shot modes, as well as rest and hold functions
CV inputs for multiplier, duration
Trigger input and button
Clock input and two trigger outputs (10 ms)
Power consumption: 110 mA (+12 V) / 20 mA (-12 V)
Width: 8 HP
Depth: 45 mm
