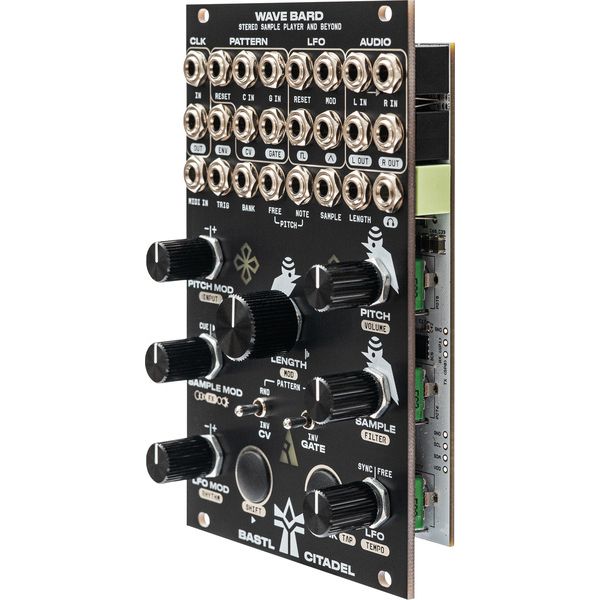

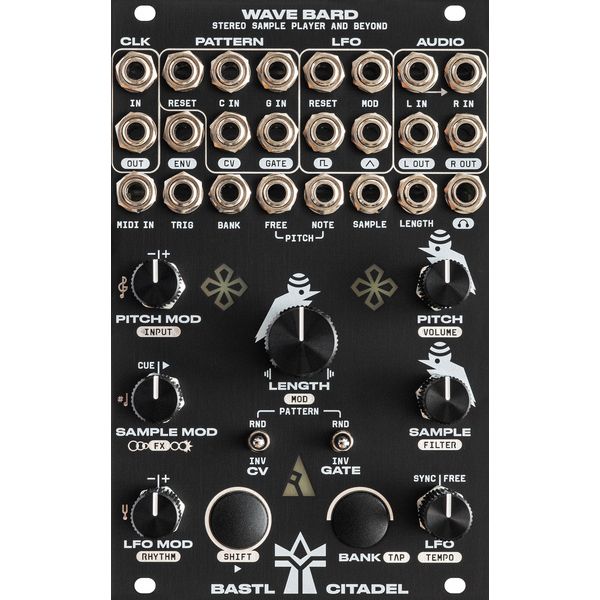

Bastl Instruments Citadel Wave Bard

Bastl Instruments Citadel Wave Bard; eurorack module; experimental stereo sample player; sampling time: 89 seconds (mono), 44 seconds (stereo); 16bits / 44kHz; memory slots for max. 32 banks with 32 samples each (editable via web app); banks and samples can be selected via control knob, CV inputs and the internal pattern generator and LFO; pitch control (+/- 2 octaves) and adjustable pitch quantiser; controls for sample modulation, sample selection, sample length & sampl envelope, LFO modulation, tempo; lowpass/highpass filter with resonance; stereo delay or chorus / flanger effects; pattern and gate generator; CV inputs for all parameters; stereo line output; stereo headphones output; stereo line input; Sync input and output; MIDI in (3.5mm TRS jack, type A); USB-C port on the back of the module (for firmware updates, USB MIDI and uploading samples); power consumption: 90mA (+12V) / 20mA (-12V); width: 16 HP; depth: 24 mm
