IK Multimedia ARC X

Software for speaker calibration incl. MEMS measuring microphone

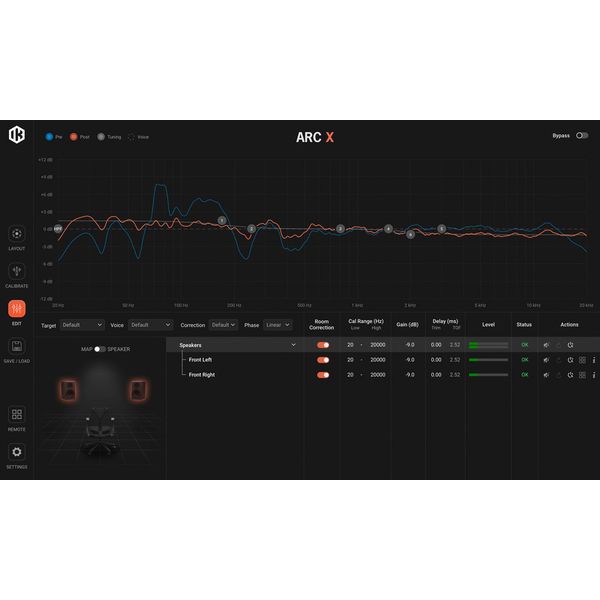

• Precise room analysis and natural-sounding correction algorithms optimise the frequency response and stereo image of studio monitors at the listening position
• Based on ARC X technology with improved algorithm and VRM (Volumetric Response Modelling)
• Supports flexible measurement modes: 1-, 3-, 7- or 21-point scans for different levels of detail
• Additional Fast Mode for quick setup with reduced measurement time
• Improved correction algorithms for consistent results and natural sound reproduction
• Target curve options including Dolby Atmos, warm tilt, bright tilt
• Custom curves and advanced editing functions (low/high range, filter resolution)
• Virtual Monitoring simulates different listening situations and playback devices, including over 20 profiles of well-known studio monitors, as well as hi-fi and consumer systems
• Monitor Control Panel inkl. Echtzeit-Analysator
• Quick setup thanks to simple step-by-step room analysis
• Natural and Linear Phase Mode
• Precise corrections with extended parameters
• Support for measurement microphones from other manufacturers

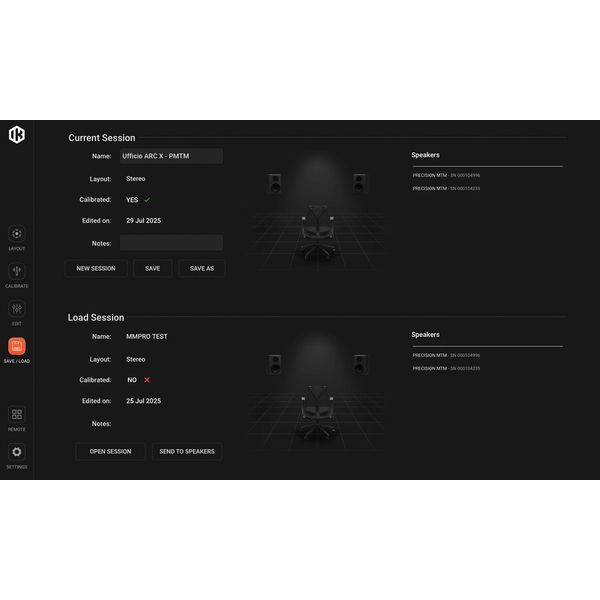

• Saves the measurement results for use in the ARC system correction plug-in
• Four factory presets and four user presets for customising playback to personal preferences
• Measurement at 48 kHz
• Supports playback resolutions up to 32 bit / 192 kHz
• Scalable user interface
• Requires an audio interface with phantom-powered XLR microphone input and a stereo monitor output as well as support for 44.1 kHz or 48 kHz sampling rate

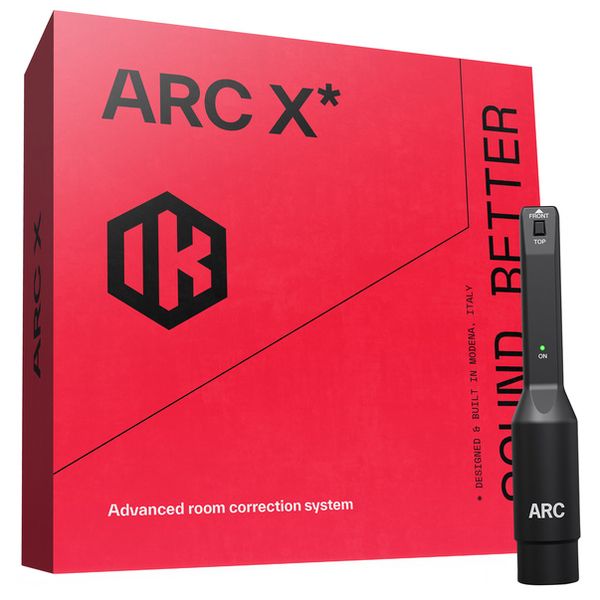

• Scope of delivery: measurement microphone, microphone clip and software licence

Measurement microphone features:

• Precision measurement MEMS microphone
• Omnidirectional polar pattern, free-field equalised
• Calibrated frequency response when used with ARC: 20-20 Hz, +/- 0.5 dB
• Transformerless output, electronically balanced, impedance 100 Ohm
• Signal-to-noise ratio: 65 dB (A)
• Max. SPL: 124 dB
• Phantom power 12-48V
• Dimensions: 129.5 mm x 23 mm
• Weight: 25 g
