Telycam Explore SE Bk

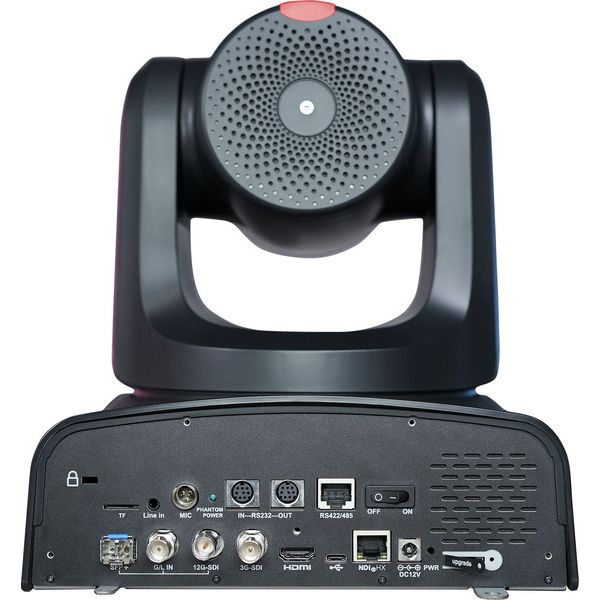

Telycam Explore SE Wh; 4K PTZ camera with a 1/1.8" sensor; Equipped with fast PDAF autofocus, 30x optical zoom, and versatile connection options such as NDI, NDI HX, 12G-SDI, 3G-SDI, HDMI, USB, and SFP+; Genlock for synchronization in multi-camera productions; FreeD integration for virtual productions; Audio with 3.5mm line-in and mini XLR with phantom power; SSDP for convenient network setup; Local backup via microSD card; Dual tally lights on the front and rear for quick identification from all sides; CROP output: supports various image sections in parallel (e.g., long shot and close-up); Auto-tracking; Technical data:; Sensor and lens:; 1/1.8 inch, 9MP UHD CMOS sensor; 30x optical zoom; Lens: f=6.91 ~ 214.64 mm, F1.35 ~ F4.6; Horizontal aperture angle: 63° (Wide) ~ 2.1° (Tele); Vertical aperture angle: 34.14° ~ 1.12°; Diagonal aperture angle: 67.08° ~ 2.27°; Min. distance: Wide: 30 cm / Tele: 150 cm; S/N Ratio: >=50dB; Image parameters:; Noise reduction: 2D&3D; Min. illumination: 0.5 lux (50 IRE Max AGC, 1/30, F1.8); White balance: Auto / Manual / ATW / Push / Indoor / Outdoor / Color Temperature; Exposure: Auto / Manual / Shutter Priority / IRIS Priority / Brightness Priority; Anti-Flicker: OFF / 50Hz / 60Hz; Image Flip / Mirroring: supported; Focus / Iris / Electronic Shutter: Auto / Manual; Gamma: supported; Backlight compensation: supported; Video Formats:; 12G-SDI:; 3840*2160 P60/50/30/25/59.94/29.97/24/23.98; 1920*1080 P60/50/30/25/59.94/29.97/24/23.98; 1920*1080 I60/50/59.94; 1280*720 P60/50/30/25/59.94/29.97; 3G-SDI:; 1920*1080 P60/59.94/50/30/29.97/25/24/23.98; 1920*1080 I60/59.94/50; 1280*720 P60/59.94/50/30/29.97/25; HDMI2.0:; 3840*2160 P60/50/30/25/59.94/29.97/24/23.98; 1920*1080 P60/50/30/25/59.94/29.97/24/23.98; 1920*1080 I60/50/59.94; 1280*720 P60/50/30/25/59.94/29.97; NDI HX3:; Main Stream:; 3840*2160 P15~60; 1920*1080 P15~60; 1280*720 P15~60; 1024*576 P15~60; Sub Stream: 640*360 P15~30; SFP+:; 3840*2160 P60/50/30/25/59.94/29.97/24/23.98; 1920*1080 P60/50/30/25/59.94/29.97/24/23.98; 1920*1080 I60/50/59.94; 1280*720 P60/50/30/25/59.94/29.9; USB Type-C:; NV12:; 1920*1080 P5; 1280*720P15; 1024*576P25; 800*448P30; YUYV:; 1920*1080 P5; 1280*720P15; 1024*576P25; 800*448P30; MJPG:; 3840*2160 P30; 1920*1080 P60; 1280 *720 P60; 1024*576 P60; 800*448P60; H264/H265:; 3840*2160 P30; 1920*1080 P60; 1280*720 P60; 1024*576 P60; 800*448P60; IP Streaming:; Video Encoding: H.264/H.265; Bitrate Control: Variable bitrate (VBR) / Constant bitrate (CBR); Bitrate Range: 1024Kbps ~ 122800Kbps; Network Port Speed: 1000M; Protocols: NDI,NDI HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC; Pan/Tilt Movement:; Preset: Remote controller: 10; Serial port: 256; Accuracy: 0.1°; Pan rotation range: -176° ~ +176°; Tilt rotation range: -90° ~ +90°; Pan rotation speed: 0.1° ~ 80°/s; Tilt rotation speed: 0.1° ~ 60°/s; I/O Interface:; Control Port: RS232, RS485, RS422, RJ45, USB, NDI HX; Video Port: NDI, NDI HX3, HDMI 2.0, 12G-SDI, 3G-SDI, SFP+, USB Type-C; Audio Port: Mini XLR (with phantom power), stereo 3.5 mm line in; Tally: supported; POE++: supported; Daisy Chain: supported; General:; Input voltage: DC12V, POE++ (IEEE802.3bt); Operating temperature range: -10°C ~ 50°C; Operating humidity range: <=80%; Color: Weiß; Dimensions (L×W×H): 232.5 x 264 x 269 mm; Weight: 4.6 kg
