Block And Block BETA-50 Truss Lift 220kg 5.3m

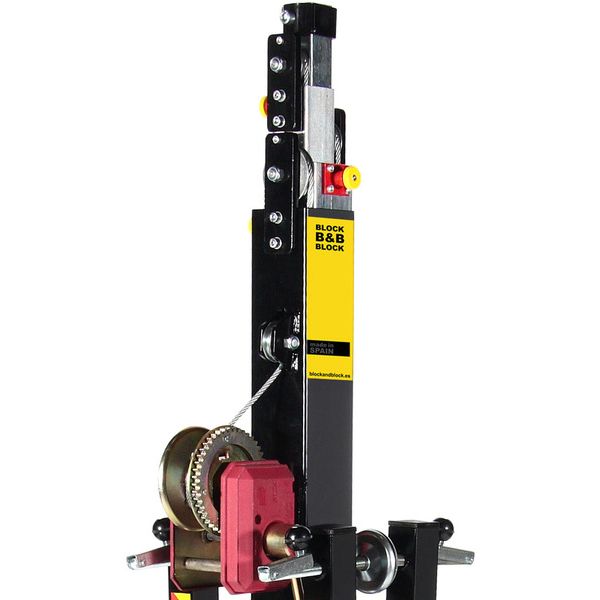

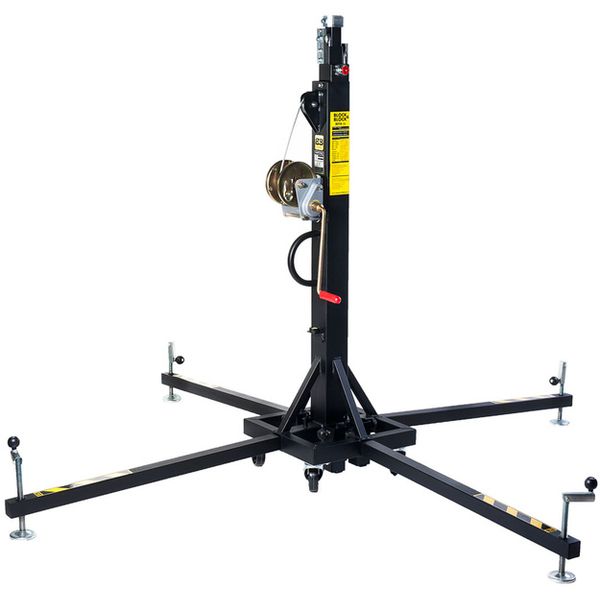

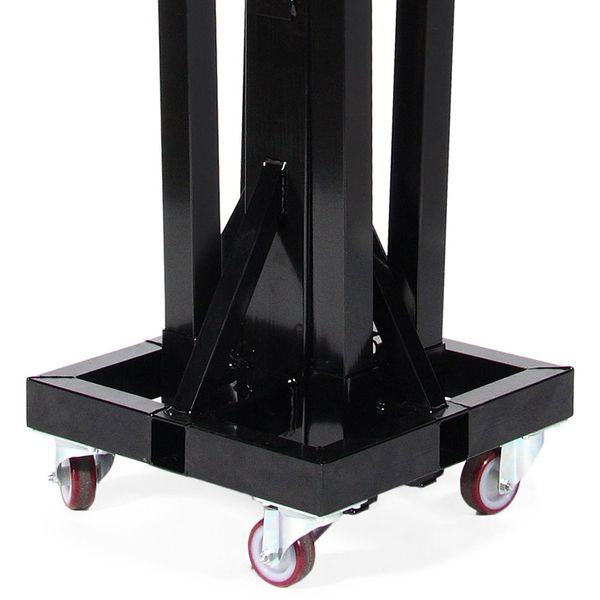

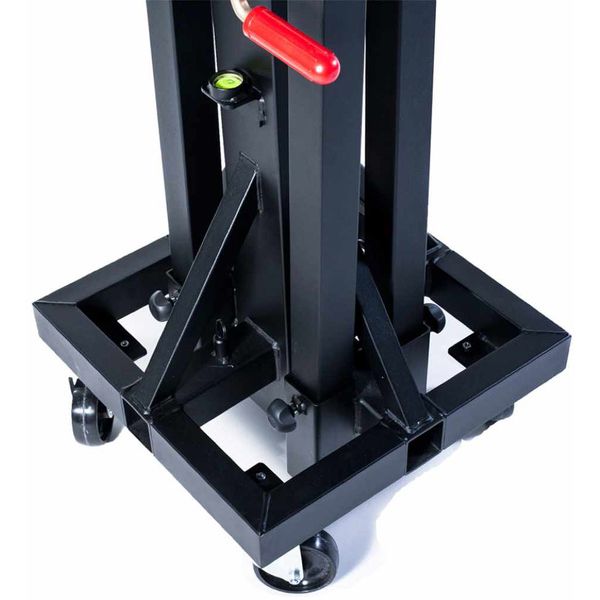

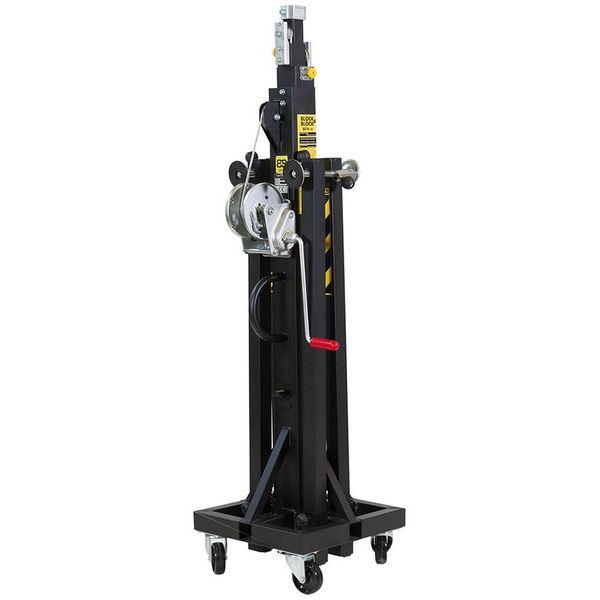

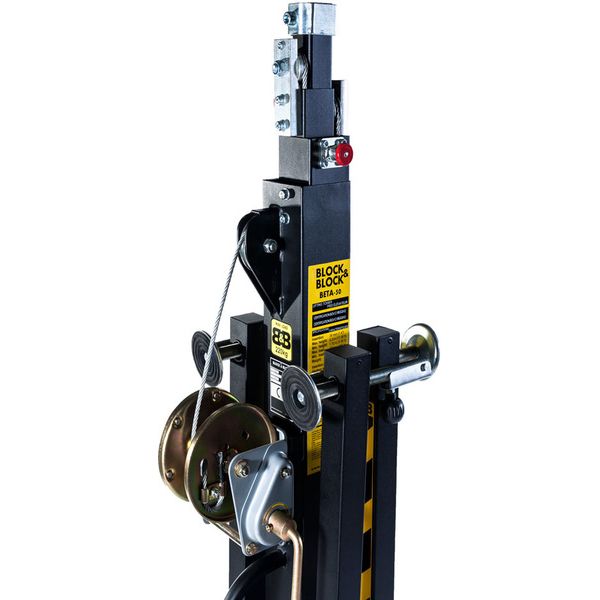

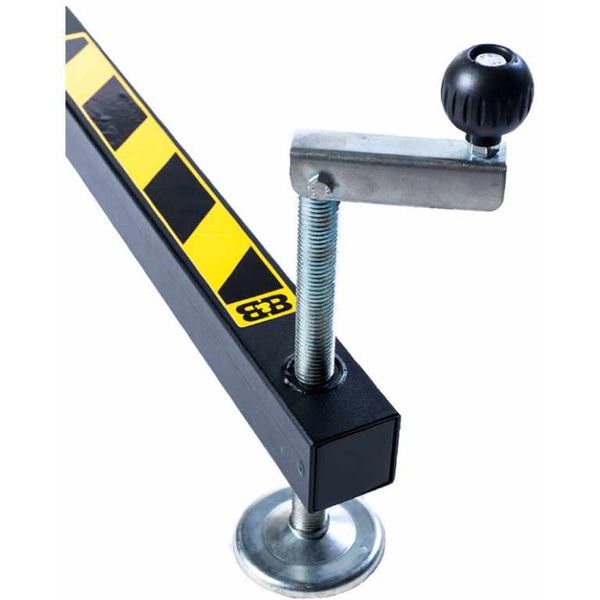

Block And Block BETA-50 Truss Lift 220kg 5.3m; 5-piece telescopic Truss lift; safety bolts to block the sections at different heights; Locking bolts in the base to anchor the outriggers; Boom with adjustable spindle and steel plate with non-slip rubber foot; Protection against corrosion by priming with epoxy paint; Bubble level for adjusting the vertical position of the tower; ground connection; transport rollers for moving the retracted tower; AL-KO COMPAC 900 winch: Maximum load 900kg with automatic load holding brake. CE declaration of conformity according to the relevant harmonized standards DIN EN 13157, EN 12100 I and II, Machinery Directive 2006/42/EG; Galvanized steel cables, type 6x19+1, manufactured on the basis of standard EN 13414-1:2004, resistance 1770N/mm²; Material: carbon steel profiles, type S-275-J0H, manufactured according to standards EN10219, EN10305.5; Made in Europe; with BGV-C1 test certificate; Maximum load capacity: 220 kg; Minimum load: 25 kg; Nominal strength rope: 1770 N/mm²; Height: Maximum: 530 cm; Minimum: 170cm; Recording system: 38mm; Type (tripods in general): truss lift; Material: steel (powder-Coated); Transport dimensions: 1.79 m x 47 cm x 47 cm; Floor space: Ø 2.11 m; Weight: 72.00 kg;

  • número de artigo 629063
  • unidade de venda 1 peça(s)
  • Construction type Telescope lift
  • Max. Load 220,0 kg
  • adapter / recording type 38 mm
  • max. Working Height (m) 5,3 m
€ 1.111
Todos os preços incl. IVA
Sob consulta
