Block And Block SIGMA-50 Truss Lift 120kg 5.0m

Block And Block

Block And Block SIGMA-50 Truss Lift 120kg 5.0m

Block And Block SIGMA-50 Truss Lift 120kg 5.0m

Block And Block SIGMA-50 Truss Lift 120kg 5.0m

Block And Block SIGMA-50 Truss Lift 120kg 5.0m

Block And Block SIGMA-50 Truss Lift 120kg 5.0m

Block And Block SIGMA-50 Truss Lift 120kg 5.0m

Mostrar tradução

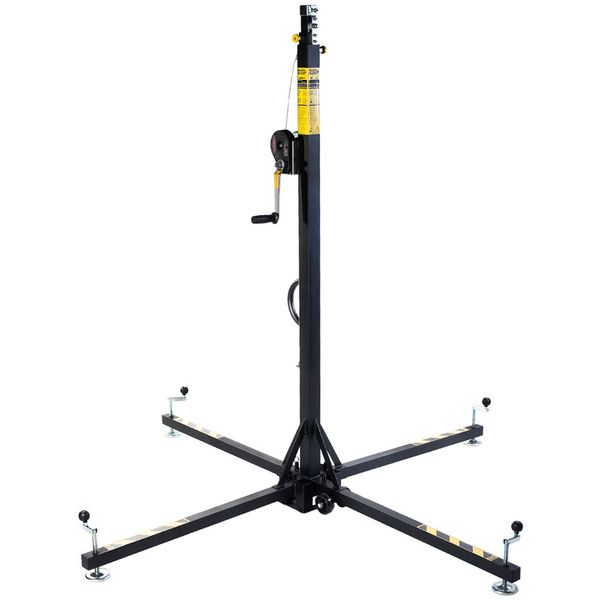

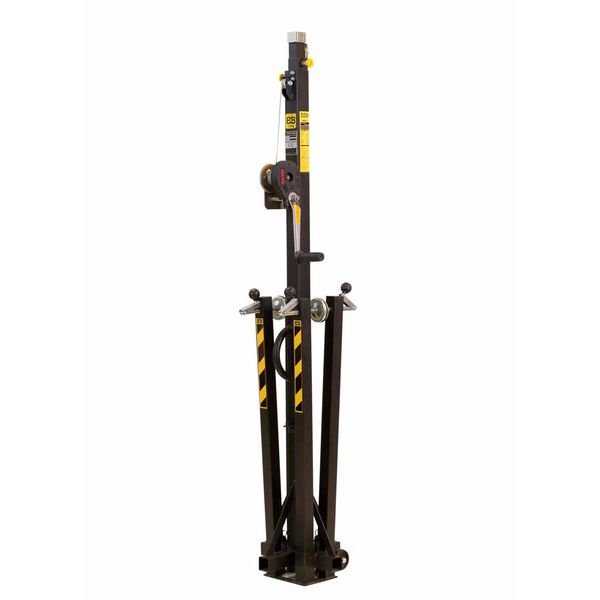

3-Part Telescopic Truss Lift

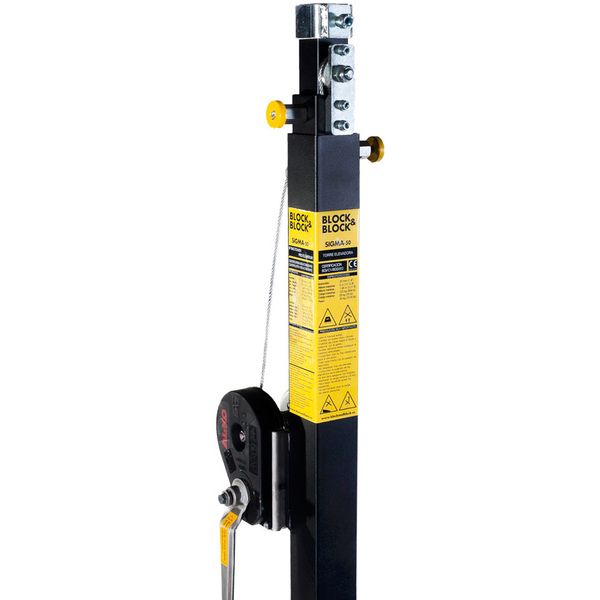

Safety bolts to lock sections at different heights

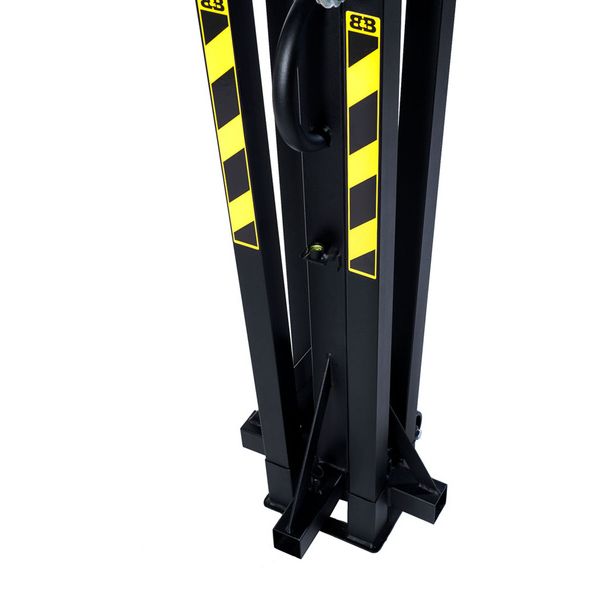

Locking bolts are available in the base to anchor the booms

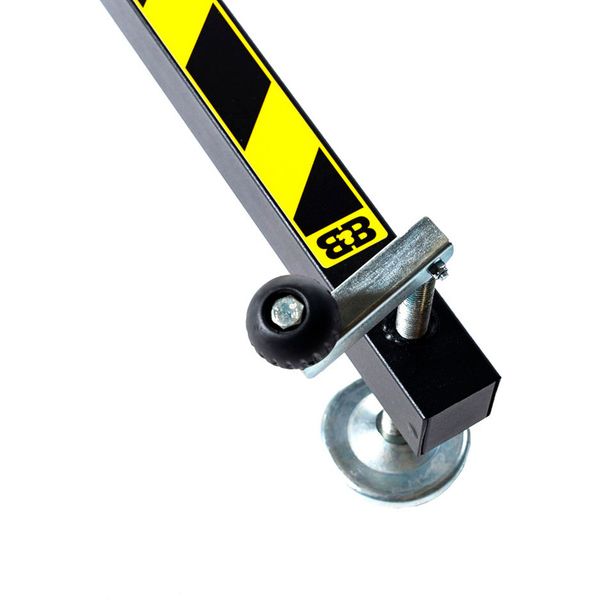

Booms with adjustable spindle and steel plate also with a non-slip rubber base
Corrosion protection due to the epoxy paint priming
Spirit level for adjusting the vertical tower position
Earthing connection
Built transport castors making it possible to move the driven tower

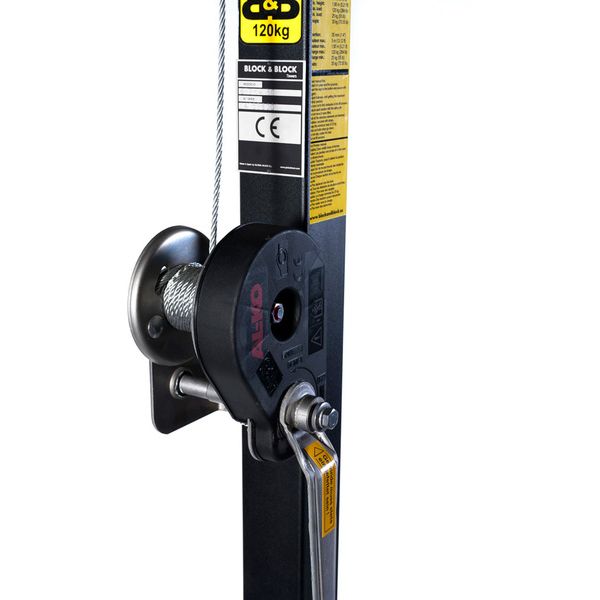

AL-KO 351 PLUS winch: maximum load 350 kg with an automatic load-holding brake
CE declaration of conformity in accordance with the relevant harmonised standards DIN EN 13157, EN 12100 I and II, Machinery Directive 2006/42/EC
Galvanised steel ropes, Art 6x19+1, manufactured on the basis of standard EN 13414-1:2004, resistance 1770N/mm²
Material: carbon steel profiles, Art S-275-J0H, manufactured according to standards EN10219, EN10305.5
BGV-C1 test certificate
Maximum load capacity: 120 kg
Minimum load: 25 kg
Nominal rope strength: 1770 N/mm²
Height: maximum 500 cm over 3 sections, minimum 190 cm
Pick-up system Ø: 35 mm
Steel rope Ø: 4 mm
Material: steel (powder-coated)
Transport dimensions: 38 cm x 38 cm x 1.9 m
Footprint Ø: 2.06 m
Weight: 33.50 kg
Made in Europe

30 dias dinheiro de volta

Thomann garantie de 3 anos

número de artigo 536097
unidade de venda 1 peça(s)
Construction type Telescope lift
Max. Load 120,0 kg
adapter / recording type 35 mm
max. Working Height (m) 5,0 m
