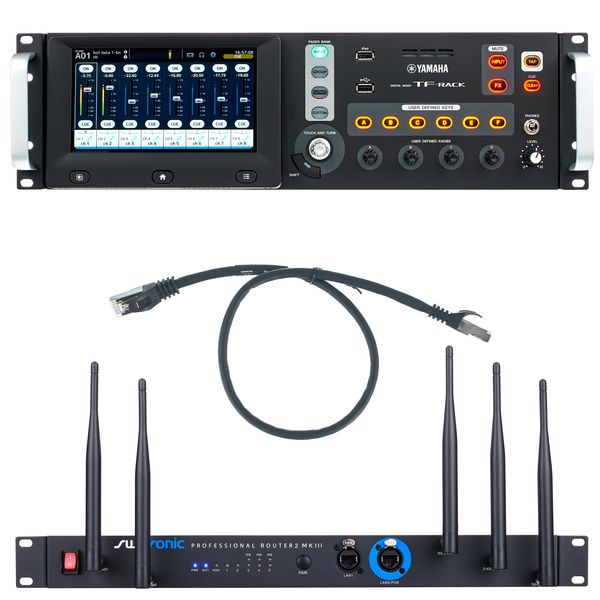

Yamaha TF-Rack Router Bundle
Bundle offer comprising

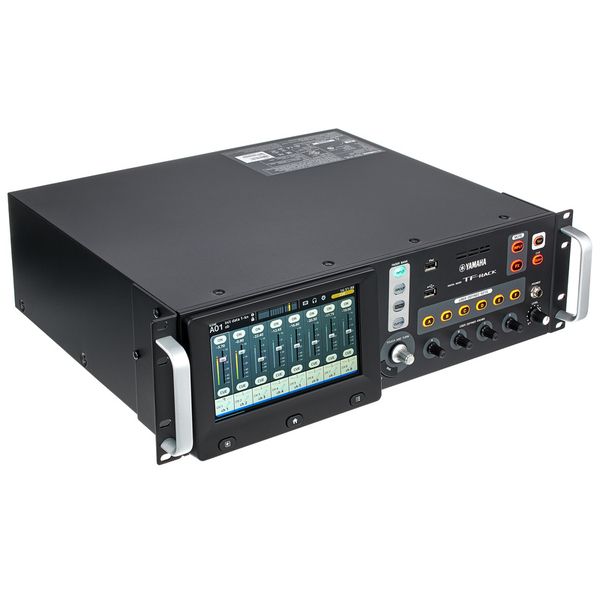

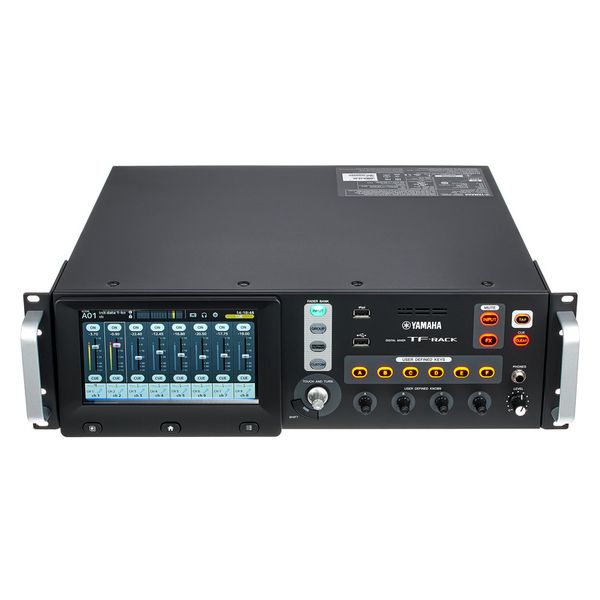

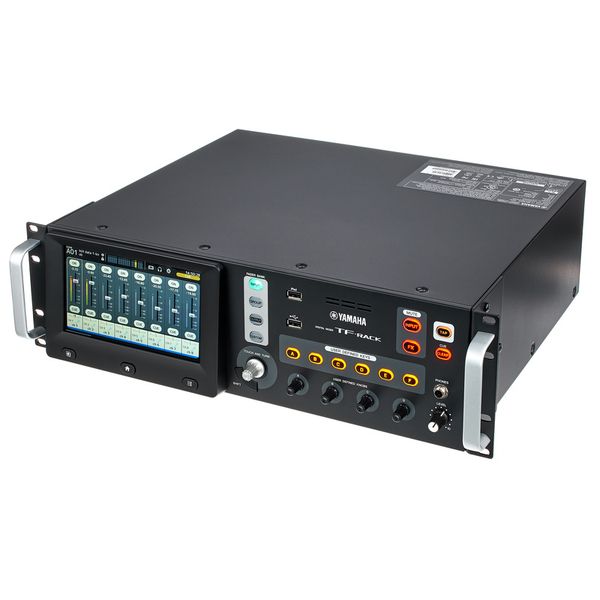

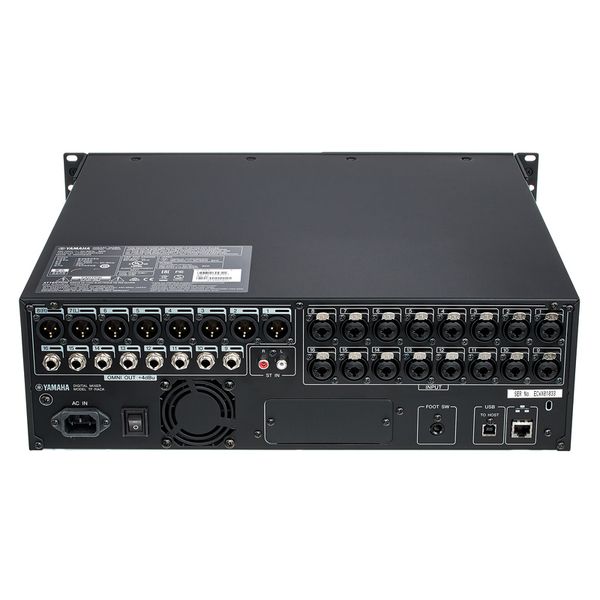

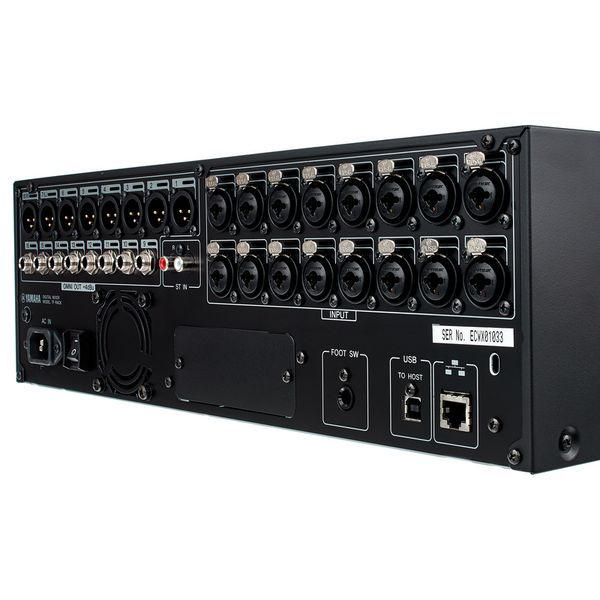

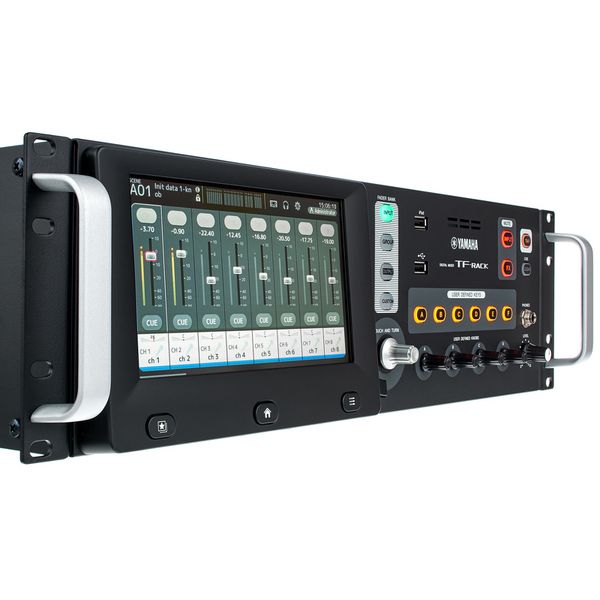

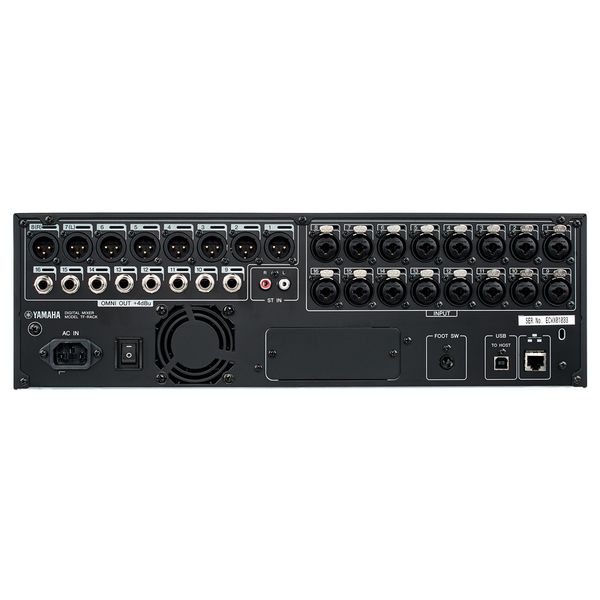

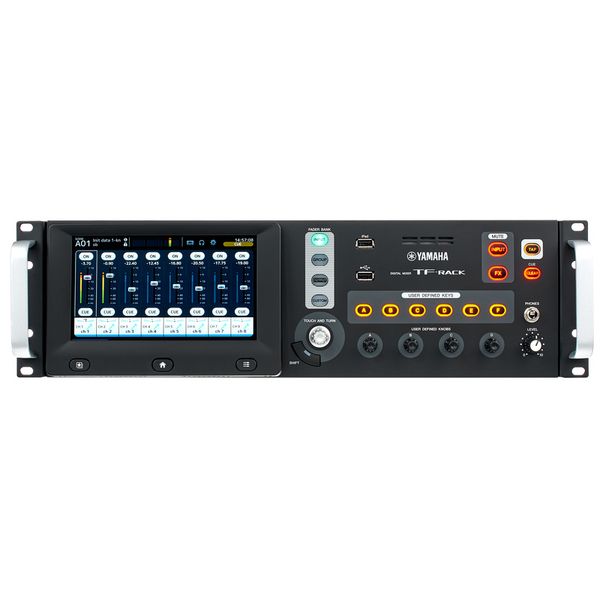

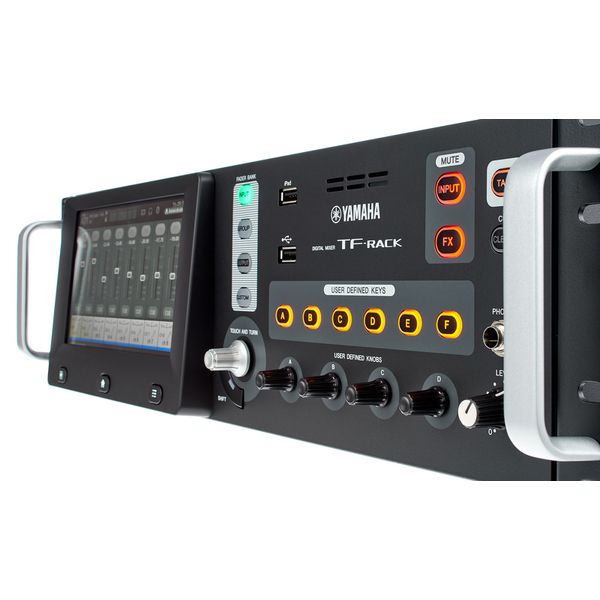

Yamaha TF-Rack
Digital mixer
- Rack version of the Yamaha TF1 digital mixer
- 16 XLR/6.3 mm combo connectors

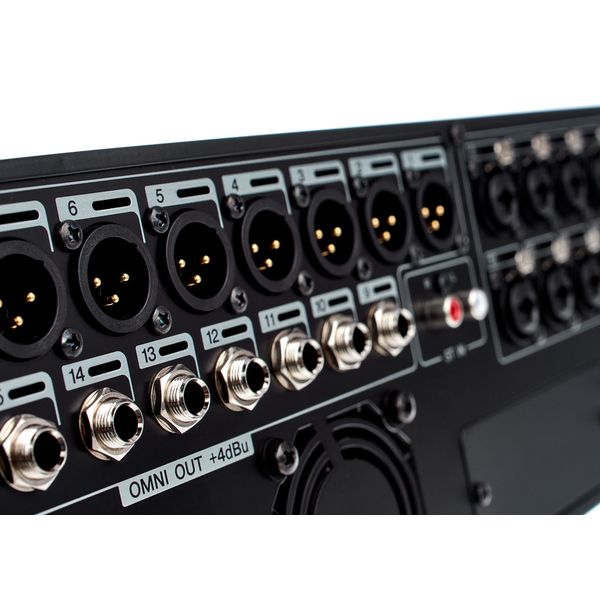

- 16 Output connectors: 1-8: XLR / 9-16: 6.3 mm jack
- Stereo RCA inputs
- Up to 40 mix channels
- Up to 64 inputs / outputs with Dante expansion
- 20 Aux Buses (8 mono + 6 stereo)
- 8 DCA
- USB
- DSP with 8 effects + 10 GEQ
- EQ
- Compressor
- 31-Band GEQ or 2-band PEQ with LPF in all aux sends
- TouchFlow operation
- Recallable D-PRE preamplifier
- 7" TFT WVGA 800x480 pixel multi-touch screen
- iPad connection
- Dimensions 480 x 132 x 409 mm
- Construction: 19", 3U
- Weight 9.2 kg
- Includes power cable, 4 rubber feet, Nuendo Live license and the necessary hardware dongle

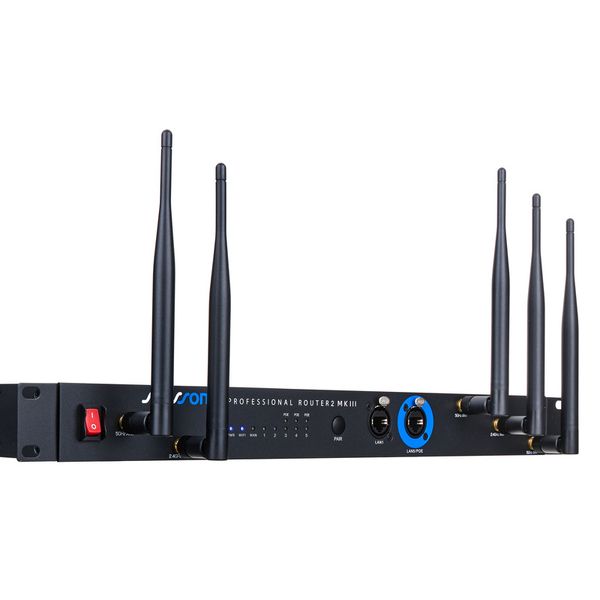

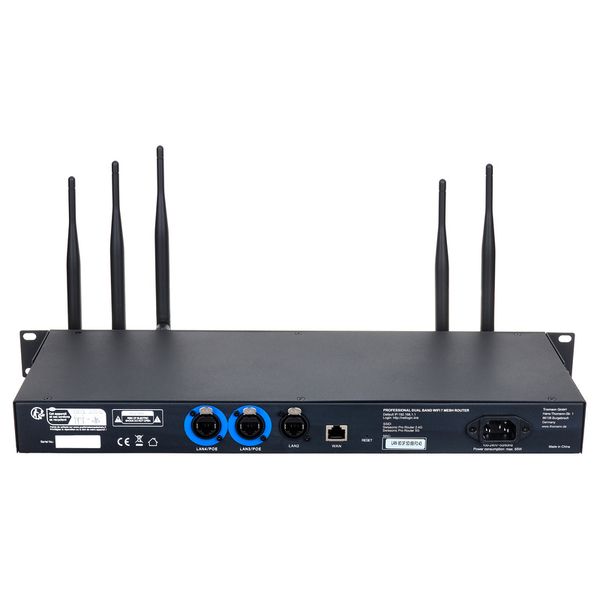

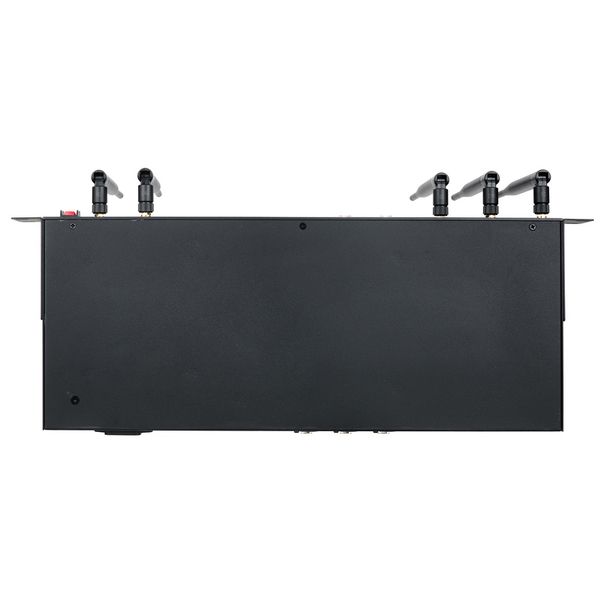

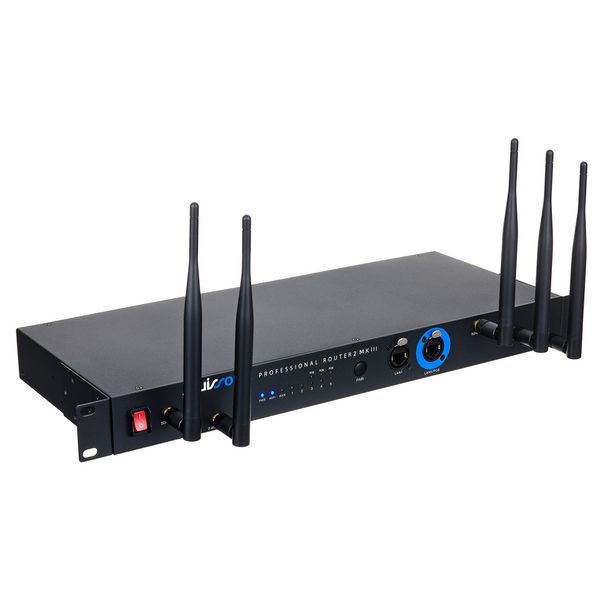

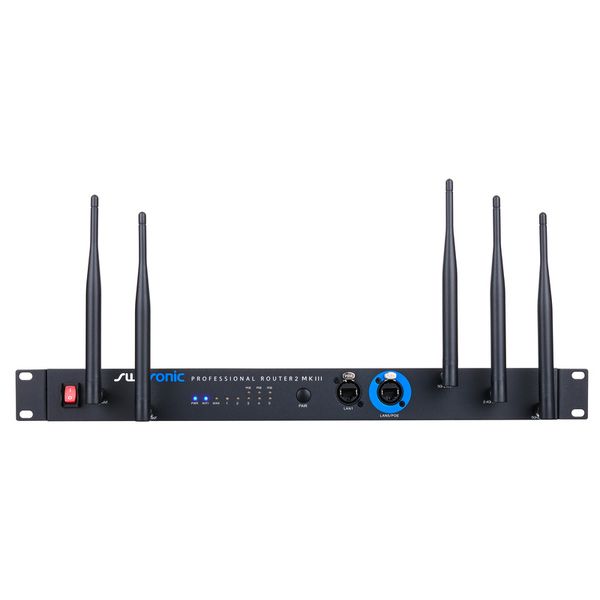

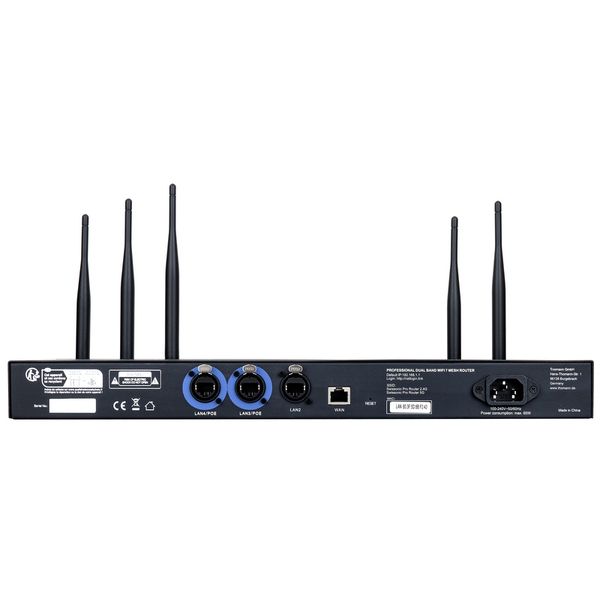

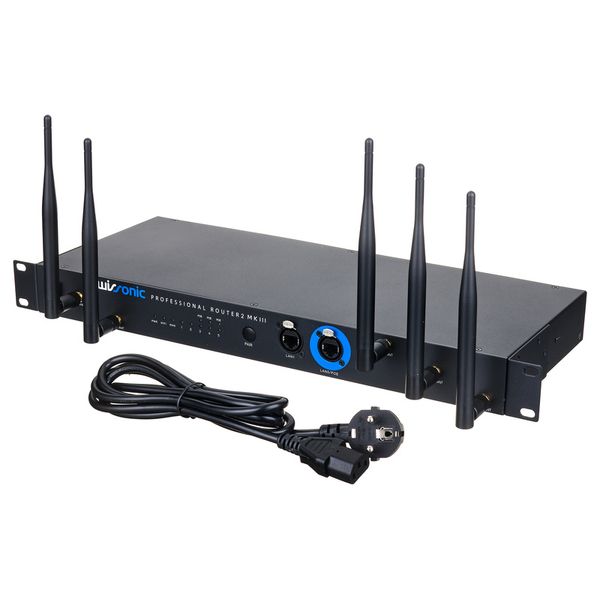

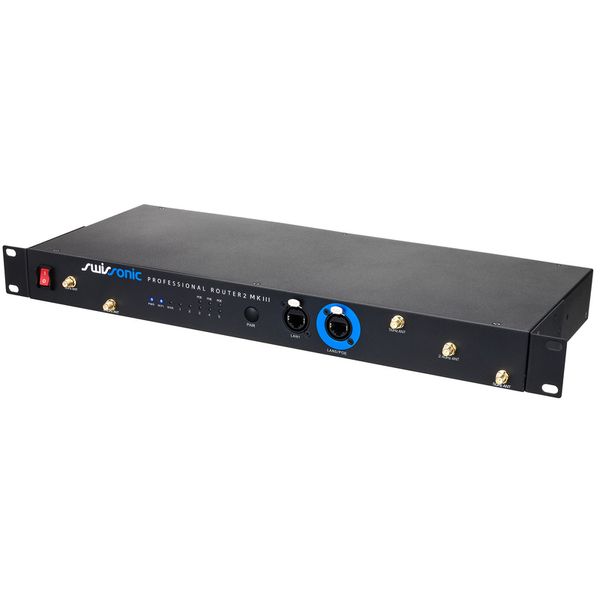

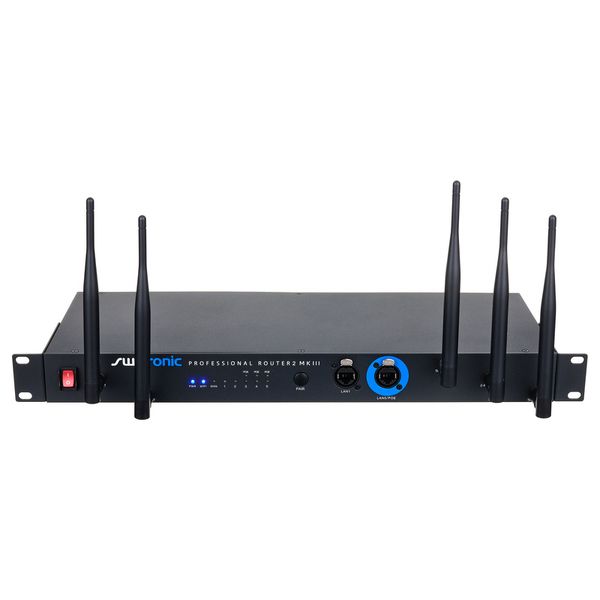

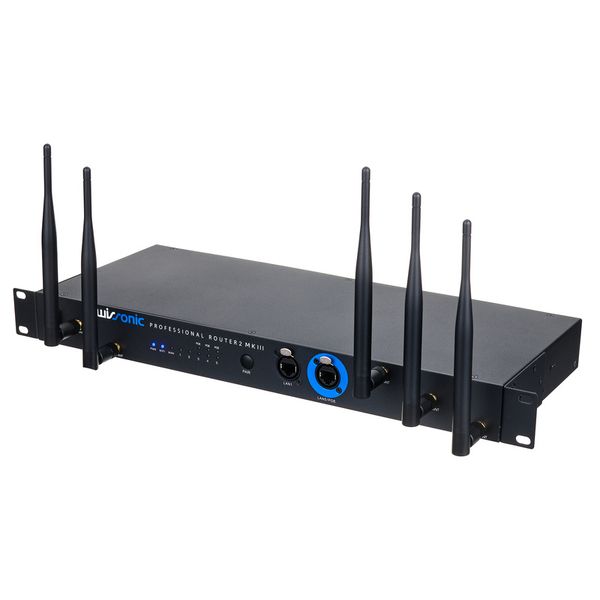

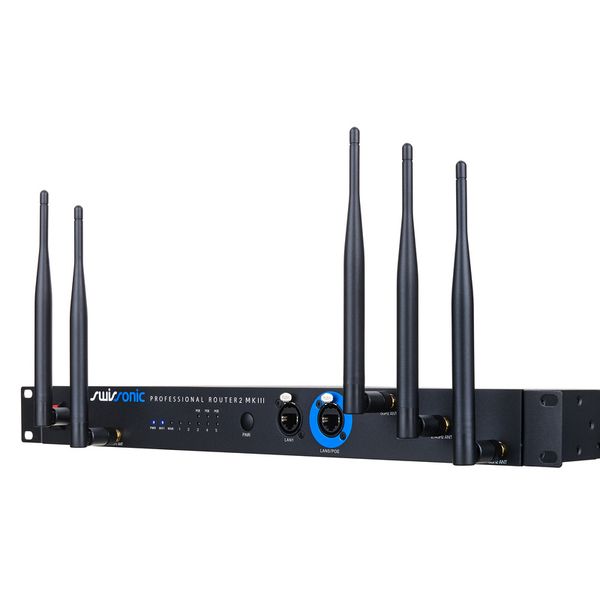

Swissonic Professional Router 2 MKIII
Wireless Dual Band Router WiFi 7 (2.4 und 5 GHz)
- Detachable antennas
- 1 x WAN-Port
- 2 x LAN Port (1000 Mbps)
- 3 x POE+ LAN Port (1000 Mbps)
- Lockable Neutrik Ethercon RJ45 connector
- WIFI standards: IEEE 802.11b/g/n/a/ac/ax/be
- Wi-Fi data throughput: up to 688 Mbps (2.4 GHz), up to 2882 Mbps (5 GHz)
- Features: Parental controls, QoS, VLAN, website blocking, IPv4/IPv6, mesh network
- Inetgrated power supply unit
- Dimensions (W x H x D, excluding mains plug and antennas): 483 x 44 x 176 mm
- Installation size: 19" / 1U
- Weight: 2.4 kg

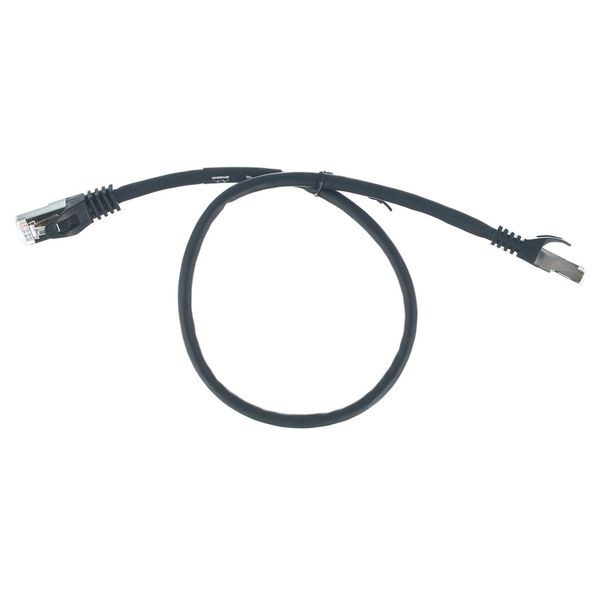

pro snake CAT6A Patch Cable 0.5m
CAt6A Patch Cable
- Length: 0.5 m
- Shielding: S/FTP
- Four x two AWG26
- Up to 500 MHz for 10 GBase-T Ethernet
- RJ45 plug / RJ45 plug with gold-plated precision plug contacts
- Exterior diameter: 6.0 mm
- Sheath: Halogen-free (LSZH)
- Weight: 0.02 kg
- Colour: Black
-
Disponível desde Abril 2026
-
número de artigo 642573
-
unidade de venda 1 peça(s)
-
User Interface Physical/remote
-
Number of faders 0
-
DSP Input channels 40
-
Number of Microphone Inputs 16
-
Physical outputs 16
-
Digital stagebox connection Dante
-
Hotspot No
-
Multitrack Record Yes
-
integratated Player/Rec via USB/SD stereo
-
19" Rackmount Yes
-
DSP Output Channels 20
-
Busses 20
-
Number of Mono Line Inputs 16
-
Number of Stereo Line Inputs 1
-
Ethernet Ethernet
-
Soundcard interface USB-B
-
Recorder Format WAV
-
RTA No
-
FX Processor 8
-
31 Band EQ 10
-
Matrix 0
-
DCA/VCA Groups 8
-
MIDI Interface No
-
Sample rate 48 kHz
-
Expansion Card slots 1
-
Digital ADAT No
-
Digital SPDIF No
-
Digital AES3/ASESEB No
-
Digital MADI No
-
Digital Dante Optional
-
110V capable Yes
-
Case No
-
Height 132 mm
-
Width 480 mm
-
Depth 409 mm
-
Weight 9,2 kg
-
